## MediaTek AIoT Smart Speaker

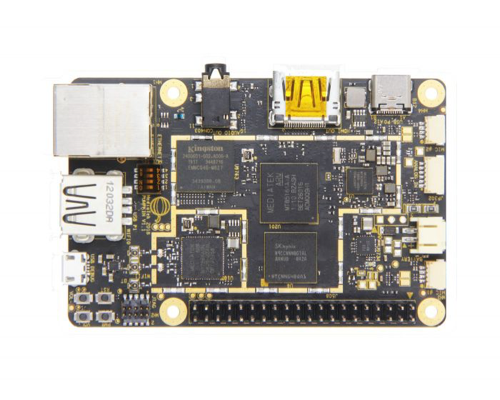

![MediaTek AIoT Smart Speaker](https://dspconcepts.com/hs-fs/hubfs/board%20(4).png?width=500&height=400&name=board%20(4).png "MediaTek AIoT Smart Speaker")

Meeting the demands of both cost-effective and high-performance far-field voice products, the MediaTek Pumpkin i300B Reference design delivers a rich set of audio features powered by MediaTek 8632B SoC. The integrated TalkTo Voice UI passes both the AVS Far-field 1.7 and Google Voice Assistant (GVA) test requirements, accelerating the development of high-performance smart speaker and home audio products.



[ Request a Demo ](https://audioinnovation.dspconcepts.com/request-demo?hsLang=en)

## Benefits

#### Reliable Far-field performance

- DSP Concepts’ cutting-edge algorithms to cut through the loud music or kitchen noises in living room
- AVS 1.7 far-field and Google ART certified algorithms
- Best-in-class barge-in and wake word detection performance

#### Support for high resolution audio playback

- Multi-channel audio playback for immersive sound applications on smart speakers and sound bars
- 3 channel AEC to effectively cancel out the multi-channel playback signals

## Audio Front-end Features

#### DSP Concepts’ TalkTo for excellent far-field performance in noisy environments

- • 4-mic Beamformer with Single Channel Noise Reduction (SCNR)
- • State-of-the-art noise cancellation with Adaptive Interference Canceller (AIC)
    - ○ No reference signal needed
    - ○ Eliminates 25+ dB of external noise sources such as background music or a booming movie
- • 30+ dB Acoustic Echo Cancellation (AEC) for excellent music barge-in

#### Support for 3.1 channel playback processing

## Software Integrations

![Software Integrations - Audio Weaver Designer](https://dspconcepts.com/hubfs/awe-icon.svg)

 Audio Weaver Designer

 Drag-and-drop graphical tool to customize and tune audio processing models in real-time with 500+ modules

![Software Integrations - Audio Weaver Core](https://dspconcepts.com/hubfs/awe-icon.svg)

 Audio Weaver Core

 Embedded audio processing engine for Cortex A35

![Software Integrations - TalkTo Voice UI](https://dspconcepts.com/hubfs/awe-icon.svg)

 TalkTo Voice UI

 Noise reduction, echo cancellation and advanced beam-forming signal processing for far-field audio detection

![Software Integrations - Multi-channel playback ](https://dspconcepts.com/hubfs/awe-icon.svg)

 Multi-channel playback algorithms

## Hardware Specifications

Processor: MT8362B

- Quad-core 64-bit ARM-Cortex A35 MPCoreTM at 1.3 GHZ

Memory

- 32-bt LPDDR3/DDR3L up to 800MHz
- 32-bit DDR up to 667MHz
- e.MMC; SLC NAND Flash

Audio I/O

- Up to 3 analog or 2 digital microphones, 8-ch TDM for microphone array, I2S x2, SPDIF audio inputs
- Line out, Headphone, 8-ch TDM, I2S x2 and S/PDIF audio outputs
- 4-ch I2Sx2, 8-ch TDM and 2-ch PDM audio inputs for microphone voice input control and connected audio products

Connectivity

- WiFi-4 (b/gn) 2.4GHz and Bluetooth 4 (Low Energy) connectivity
- WiFi-5 (b/g/n/ac) Dual-band 2x2 & Bluetooth 5 via MT7668

## Included with the demo kit

- MediaTek AIoT Pumpkin Evaluation Kit with i300B SoC
- Vesper HAT with 4-mic Trillium microphone array geometry integrated with dust and water-resistant piezoelectric MEMS microphones
- Voice UI Quickstart Bundle: Everything you need to know to design voice-enabled Smart home and IoT products, including design guidelines, microphone placement, an Audio Weaver Designer layout (.AWD), and tools to get started.
- USB Cables

![MediaTek AIoT i300A / i300B Diagram](https://dspconcepts.com/hubfs/diagram-(1).png "MediaTek AIoT i300A / i300B Diagram")
