## Soundskrit Horizon Demo Platform

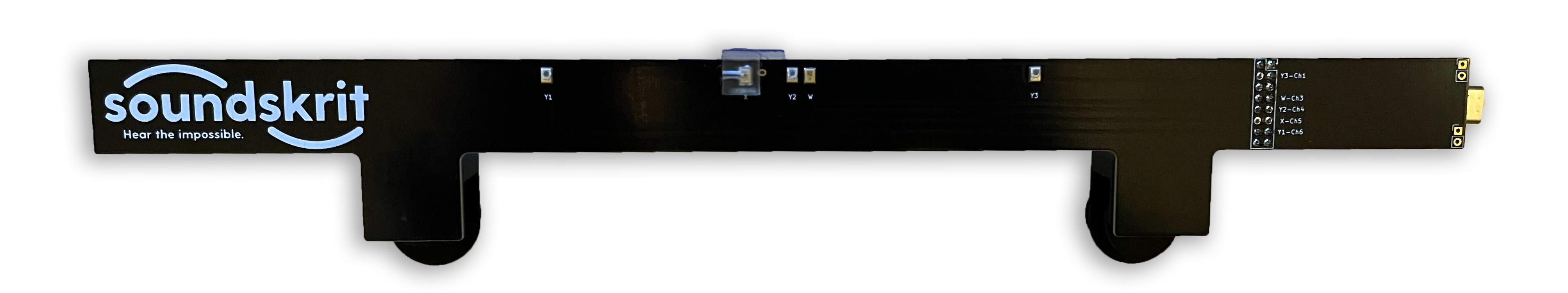

![Soundskrit EVK contents front2 clean](https://dspconcepts.com/hs-fs/hubfs/Soundskrit%20EVK%20contents%20front2%20clean.png?width=4014&height=749&name=Soundskrit%20EVK%20contents%20front2%20clean.png "Soundskrit EVK contents front2 clean")

The Soundskrit Horizon Demo Platform helps product makers discover how directional microphones can be integrated into various end products. Using the NXP MIMXRT1062 MCU, this design is compatible with Audio Weaver and features a built-in 5-mic array with adjustable configurations. Connected over USB, the kit appears as a soundcard, allowing easy recording of any of the microphones or processed signals. With this platform, audio layouts leveraging directional microphones can be easily created and tuned, switching between microphone pairs based on the use case. Convenient mounting hardware is included for affixing the demo platform to the bezel of a notebook computer, to test microphone configurations in specific use cases.

[ Contact Sales to Get the Reference Design ](mailto:sales@dspconcepts.com)

## Benefits

- ##### Embedded Audio Weaver libraries by DSP Concepts

- ##### Flexible microphone array allows for testing multiple configurations

- ##### Mounting hardware conveniently positions the board on an existing notebook computer to replicate microphone positioning in a bezel

- ##### Compatible with any system supporting USB 2.0 Generic Audio Soundcard

- ##### Unique directional MEMS microphones reject interfering noise and reverberation

## Audio Front-end Features

##### Integrated 5-microphone array

- • 4 Soundskrit dipole MEMS microphones
- • 1 Knowles Lazarus omnidirectional MEMS microphone
- • Adjustable hardware configurations using pairs of microphones: single dipole, omnidirectional, linear dipole array, X-Y pair, cardioid

##### DSP Concepts’ Audio Weaver provides an easy interface to create and tune DSP layouts

- • Drag-and-drop arrangement of hundreds of fundamental modules
- • Test and iterate layouts easily and instantly

## Software Integrations

![Software Integrations - Audio Weaver Designer](https://dspconcepts.com/hubfs/awe-icon.svg)

 Audio Weaver Designer

 Drag-and-drop graphical tool to customize and tune audio processing models in real-time with hundreds of modules

![Software Integrations - Audio Weaver Core](https://dspconcepts.com/hubfs/awe-icon.svg)

 Audio Weaver Core

 Embedded audio processing engine for the Arm® Cortex®-M7

![Software Integrations - TalkTo Voice UI](https://dspconcepts.com/hubfs/awe-icon.svg)

 Soundskrit Horizon GUI

 Adjust hardware configuration and channel mapping, utilize the AI-powered privacy to isolates the user, view I/O metering, and change audio driver settings from one easy graphical user interface

## Hardware Specifications

Processor:

- Custom MCU board with Arm Cortex-M7 @ 600 MHz

Memory

- 512 kB RAM available for audio layout

Audio I/O

- CS42448 192kHz, 24 bits codec with 6 ADC channels
- 5 onboard analog microphones

Board Connectors

- USB-C, for use with USB-C to Type A cable

## Demo Kit Information:

- Available from [Soundskrit.ca](http://soundskrit.ca)
- Includes Soundskrit Horizon Demo Kit with PARDI board, mounting clamps, and Soundskrit Horizon GUI software
- Audio Weaver QuickStart Bundle: Everything you need to know to design and tune products, including design guidelines, Audio Weaver Designer layout files (.AWD), and tools to get started.
- USB-C to USB Type-A cable

Soundskrit EVK contents front

Soundskrit EVK Box

Passthru AWE Designer canvas

Cardioid Audio Weaver Designer
