STM32F769I DISCO Board ST Module

Has any one used ST modules available in Audio Weaver Designer





Axel Nilsson
Offline
Last seen: 23 hours 57 min ago
Joined: 12/19/2016 - 2:02pm

Hi. Thanks for the question.



We don't currently include any example layouts that use the ST modules with the STMicro edition of Designer. However, in the <AWE Designer STMicro>\Modules\STMicro\Doc folder, there are User Guide .pdf's with fairly extensive documentation for each module. These User Guides should provide enough information to use the modules effectively.



Thanks

-Axel

InterDS
Offline
Last seen: 4 months 6 days ago
Joined: 11/02/2017 - 12:09pm

I get following error when I try to use ST smart volume .  what I am I doing wrong ?

InterDS
Offline
Last seen: 4 months 6 days ago
Joined: 11/02/2017 - 12:09pm

InterDS
Offline
Last seen: 4 months 6 days ago
Joined: 11/02/2017 - 12:09pm

Here is design file

Axel Nilsson
Offline
Last seen: 23 hours 57 min ago
Joined: 12/19/2016 - 2:02pm

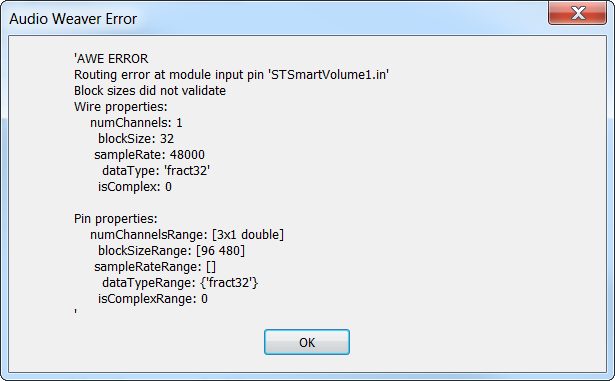

You are getting this build failure when you try to run your layout because the block size of your input to the STSmartVolume module does not match the allowable block size range set by the module. You can see in the error message that the STSmartVolume module has a block size range of [96 480], which means that the input block size must be between 96 and 480 samples.

You can increase your block size either by changing the input pin directly, or by using a buffer up module.



-Axel

InterDS
Offline
Last seen: 4 months 6 days ago
Joined: 11/02/2017 - 12:09pm

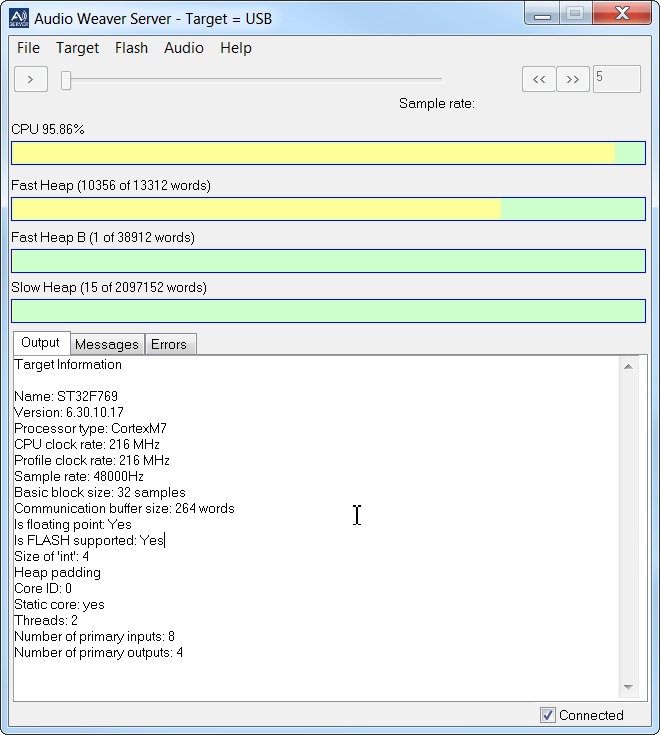

Is it possible to see MIPS utilization by various modules based in AWE core?.  I can only see total cpu utilization but there is no breakdown for different modules.



Axel Nilsson
Offline
Last seen: 23 hours 57 min ago
Joined: 12/19/2016 - 2:02pm

Per module profiling is not available on the feature limited STMicro edition of Designer. Only the Standard and Pro editions have per module profiling capabilities.



If you're interested in purchasing a Pro or Standard license, please send an email to info@dspconcepts.com for a quote.



Thank you

-Axel
