Command Verification in Flash Mode

Hi,

Processor: ADSP-21569 EZ-KIT
Audio Weaver Version: 8.148.11.7 (Trial version of Standard Audio Weaver Edition)
Build Number: None

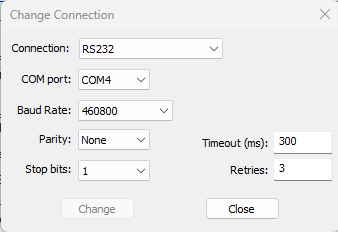

AWE Server configuration:

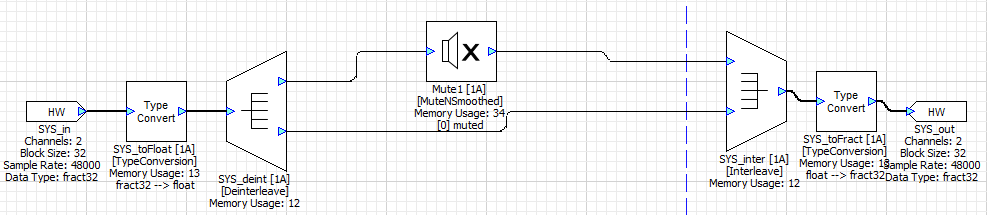

Audio weaver Schematic:

Procedure Followed:

1.Loaded the AWE Core code on the target.

2.Loaded the Audio Weaver schematic.

3.Initially, the Mute1 module was in the unmute state, and the output was observed correctly.

4.In the Audio Weaver Server, I sent the command via execute script option (from a text file) to set the module to the mute state:

     Sent Command:set_module_state, Mute1.isMuted[1], 2

After this command, the output was muted in one channel as expected.

5.Then I flashed both the Audio Weaver schematic via Flash-->flash manager option in server and the AWE Core to the target. After flashing, only one channel’s  output was observed as expected.(as        per the flashed code).

Now, I try to unmute the muted channel by sending this command:

       Sent Command:set_module_state, Mute1.isMuted[1], 1

But the error displayed was: failed, failed, 'Mute1' is undefined

Could you please clarify whether any additional procedure or initialization steps are required to send text commands in flash mode?

Hi Gary,

Thanks for Your Support!

Could you please clarify my doubt regarding the inclusion of additional modules in the Audio Weaver schematic?

Processor: ADSP-21569 EZ-KIT
Audio Weaver Version: 8.148.11.7 (Trial version of Standard Audio Weaver Edition)
Build Number: None

AWE Server configuration:

I am trying to include some additional Audio Weaver modules (for example, WaveFileSource and WaveFileSink) in my AWE schematic. However, Audio Weaver Designer shows a “module not found on target” error when the layout is downloaded to the hardware (see attached screenshot).

To resolve this, I tried adding these modules under the define "LISTOFCLASSOBJECTS" in ModulesLish.h file in the target code. But even after doing this, I still get unresolved symbol errors during the build in the target code.

Could you please clarify whether any additional steps are required to properly include these modules in the target AWECore ?

Hi Gary,

Processor: ADSP-21569 EZ-KIT
Audio Weaver Version: 8.148.11.7 (Trial version of Standard Audio Weaver Edition)

AWE Server Configuration:

I am trying to send Text based commands (such as get_module_state and set_value) to control modules that are inside a Subsystem in my Audio Weaver design.
However, whenever I try to reference a module inside the Subsystem, the server always responds with 'undefined'.Please find the attached image.

Sent Commands:

set_value,SubSys1.Volume1.gain,-10
set_value.Volume1.gain,-10

Output Message:

Audio weaver Schematic:

Could you clarify the correct procedure for addressing modules inside Subsystems when issuing commands?
